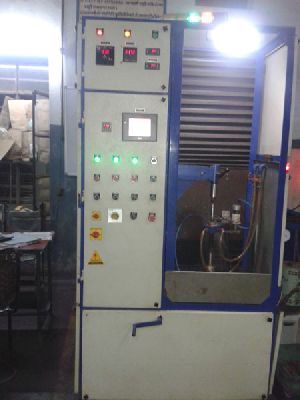

Vertical Induction Hardening Machine

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Type Induction Heating Equipment
Voltage 220V, 380V
Application Industrial
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Warranty
2years
Color
Available in Many Colors

The company is a highly acclaimed Manufacturer, Supplier and Service Provider of Vertical Induction Hardening Machines. The Vertical Induction Hardening Machine is a complete machine with mechanical scanner, cooling system and power source as well as other things. Online tempering and dual station facilities are also available in the Vertical Induction Hardening Machines along with the other features.

Product Description :
Mechanical Scannner

  • 500-3000 mm vertical mechanical scanner with AC drive and AC motor
  • S.S. spindle center
  • Both manual and auto functions available
  • The whole sequence of operation is programmed in PLC and, Heat on time, quench on time, tempering time etc.
  • Cooling water and quench water pressure gauges are mounted in front to view by operator
  • Fabrication sheet cover (Aluminum) 16 gauge
  • Wire (Make : Fenolax/Kanlinga)
  • Temperature meter (Make: Slectron).
  • R.Y.B indicator, digital voltmeter (Make: Slectron), tower light.


Distilled Water Re-circulation system suitable for all type Power Supplies & Induction Coils.

  • Pump (Make: Crompton)
  • Heat exchanger (Make: S.S Plate type)
  • Complete pipe lines and valves
  • Water reservoir tank (Make: Sintex)
  • Necessary instruments & gauges


PLC (MAKE: Omron) with HMI (Make: Omron) Controlled Single station component heating system.

  • PLC & HMI based electrical control panel with switch gears
  • All outputs are driven by relays (Make: Omron)
  • X/Y slide arrangements for inductor movements


Induction Heating Power Supply Unit (IGBT version)

  • 100% solid state design, IGBT base (Make: Infineon/Eupec)
  • Low electric noise
  • Fast response
  • Over temperature protection, water flow fail protection, over current and over voltage protection
  • Highly reliable and efficient voltage source inverter
  • Operating voltage 3 phase/50 Hz (Input voltage 415V)
  • Transformation ratio available tapping in primary as well as secondary
  • Simple and field proven control circuits
  • Compact modular design


Quench Water Re-circulation system suitable for induction heating system.

  • Pump (Make: Crompton) with the piping & valve arrangements
  • Pipe lines and valves
  • Quench tank (S.S)
  • Quench assembly settings
  • Quench manifold and quench barrel
  • Necessary instruments & gauges
