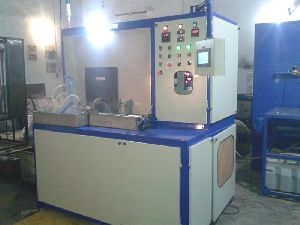

Horizontal Induction Hardening Machine



The company also makes available well-designed Horizontal Induction Hardening Machine. The range of Horizontal Induction Hardening Machine offered by us is designed as per the latest trends in the market. Our range of Horizontal Induction Hardening Machine is competitively priced and very durable. We make sure that Horizontal Induction Hardening Machine offered by us is resistant to damages and early wear and tear. This machine is specially recommended for fast production and less rejection. Fast online tempering is also available in this machine.

Product Description :
Mechanical Sannner :

  • 200-1000 mm horizontal mechanical scanner with AC drive and AC motor.
  • S.S. Rollers.
  • Both Manual and Auto functions available.
  • The whole sequence of operation is programmed in PLC and , Heat ON time, Quench ON time , tempering time etc.
    Cooling water and Quench water pressure gauges are mounted in front to view by operator
  • Fabrication sheet cover (Aluminum, ) 16 gauge
  • Wire (MAKE : fenolax/kanlinga) T
  • emperature meter (MAKE :SLECTRON).
  • R.Y.B Indicator, Digital Voltmeter(MAKE: SLECTRON),Tower Light.


Distilled Water Re-circulation system suitable for all type Power Supplies & Induction Coils.

  • Pump (MAKE: Crompton).
  • Heat exchanger (MAKE: S.S Plate type)
  • Complete pipe lines and valves.
  • Water reservoir tank .(MAKE : Sintex)
  • Necessary instruments & gauges.


PLC (MAKE : Omron)with HMI (MAKE :Omron) Controlled Single station component heating system.

  • PLC & HMI based electrical control panel with Switch gears.
  • All outputs are driven by Relays (MAKE : Omron)
  • X / Y slide arrangements for Inductor movements.


Induction Heating Power Supply Unit (IGBT version,)

  • 100% Solid State Design, IGBT base(MAKE :Infineon/Eupec)
  • Low Electric Noise
  • Fast Response
  • Over temp. protection, water flow fail protection ,over current and over voltage protection.
  • Highly Reliable and Efficient Voltage source inverter
  • Operating voltage 3 phase /50 Hz (Input voltage 415V)
  • Transformation Ratio Available tapping in primary as well as secondary
  • Simple and field proven control circuits,Compact, modular design


Quench Water Re-circulation system suitable for induction heating system

  • Pump (MAKE: Crompton) with the piping & valve arrangements.
  • Pipe lines and valves.
  • Quench tank.(S.S)
  • Quench Assembly Settings
  • Quench manifold and quench barrel.
  • Necessary instruments & gauges .

Specifications

Type Induction Heating Equipment
Use Pool Cleaning
Certification CE Certified
Weight 100-200kg
Color Metallic
Voltage 220V
Driven Type Electric
Warranty 1year
